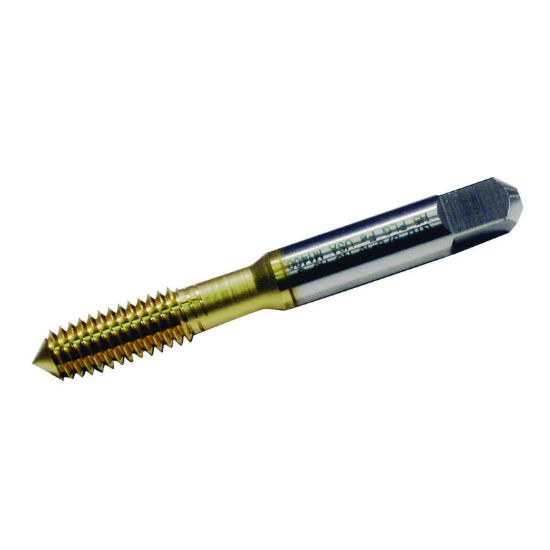

WIDIA/KENNAMETAL 18357 M5-0.80MM Roll Form Bottoming 1.0P-2.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID18357
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Blind Hole Tapping, Roll Form Tapping, Tapping
Shipping State Ohio
Package Size 1
Made In USA No
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Thread Limit D7
Tool Material Steel
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Overall Len 2.3800 60.45MM
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1500
Tap Style Roll Form
Tap Chamfer 1.0P-2.0P
Thread Pitch 0.80MM
Flute Direction R - Right
Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Length Type Standard
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Thread Size M5
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
