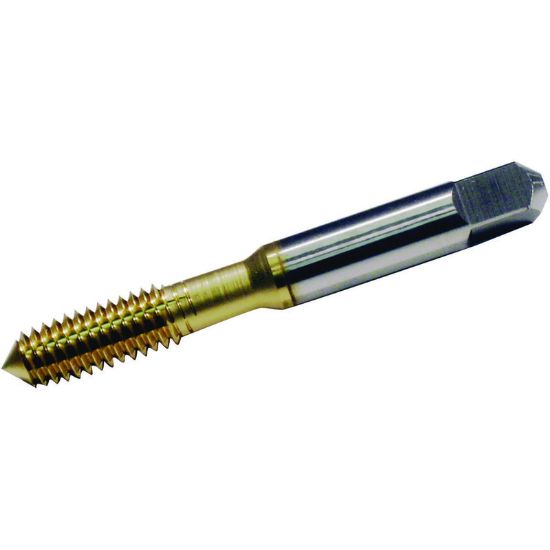

WIDIA/KENNAMETAL 18331 1/4-28.00TPI Roll Form Bottoming 1.0P-2.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID18331
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Roll Form Tapping, Blind Hole Tapping
Performance Rating General Performance
Package Size 1
Coating TiN
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Style Roll Form
Tap Chamfer 1.0P-2.0P
Thread Pitch 28.00TPI
Thread Size 1/4"
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Thread Limit H4/GH4
Shank/Pilot Dia 0.2550 6.48MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
