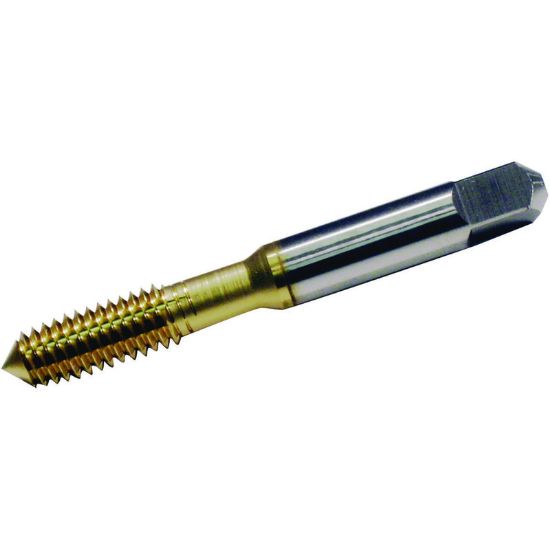

WIDIA/KENNAMETAL 18326 1/4-20.00TPI Roll Form Bottoming 1.0P-2.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID18326
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Made In USA No
Performance Rating General Performance
Shipping State Ohio
Package Size 1
Coating TiN
Dimensional Specifications
Thread Size 1/4"
Drill Range 0.2244 5.70MM - 0.2311 5.87MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Limit H4/GH4
Shank/Pilot Dia 0.2550 6.48MM
Thread Pitch 20.00TPI
Thread Type NC/UNC
Tap Style Roll Form
Tap Chamfer 1.0P-2.0P
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
