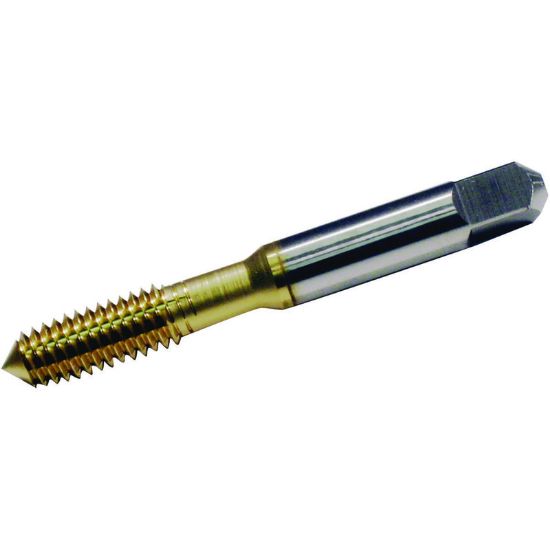

WIDIA/KENNAMETAL 18317 No.10-24.00TPI Roll Form Plug 3.0P-5.0P HSSE TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID18317
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Roll Form Tapping, Through Hole Tapping
Performance Rating General Performance
Shipping State Ohio
Coating TiN
Made In USA No
Package Size 1
Dimensional Specifications
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Limit H4/GH4
Tool Material Steel
Overall Len 2.3800 60.45MM
Tap Square 0.1520
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Length Type Standard
Thread Size No.10
Thread Type NC/UNC
Shank/Pilot Dia 0.1940 4.93MM
Drill Range 0.1685 4.28MM - 0.1740 4.42MM
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
