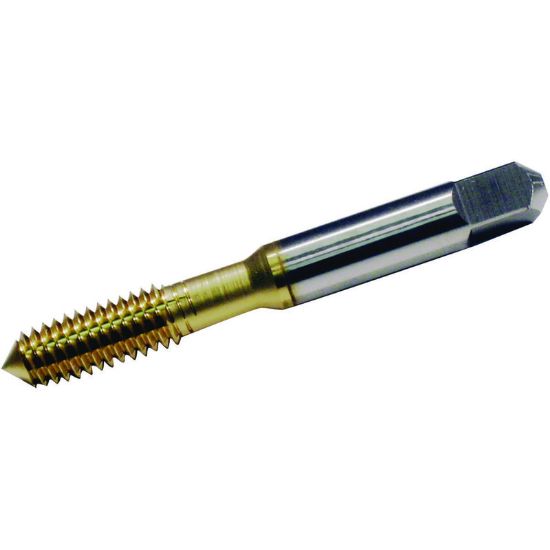

WIDIA/KENNAMETAL 18260 M6-1.00MM Roll Form Plug 3.0P-5.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID18260
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Roll Form Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Ohio
Dimensional Specifications
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Size M6
Thread Pitch 1.00MM
Thread Limit D8
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Tool Material Steel
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Flute Direction R - Right
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Length Type Standard
Tap Style Roll Form
Shank/Pilot Dia 0.2550 6.48MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
