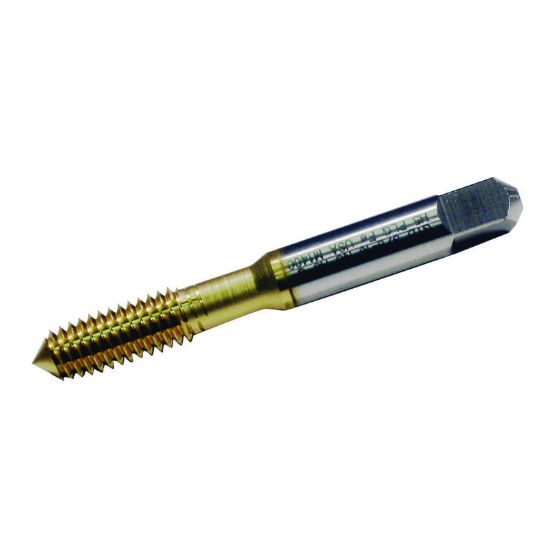

WIDIA/KENNAMETAL 18259 M6-1.00MM Roll Form Bottoming 1.0P-2.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID18259
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Blind Hole Tapping, Bottom Tapping, Tapping, Roll Form Tapping
Package Size 1
Performance Rating General Performance
Shipping State Ohio
Dimensional Specifications
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Flute Direction R - Right
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Length Type Standard
Tap Type Bottoming
Thread Type Metric
Tap Square 0.1910
Tap Style Roll Form
Tap Chamfer 1.0P-2.0P
Tool Material Steel
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Size M6
Thread Limit D8
Shank/Pilot Dia 0.2550 6.48MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
