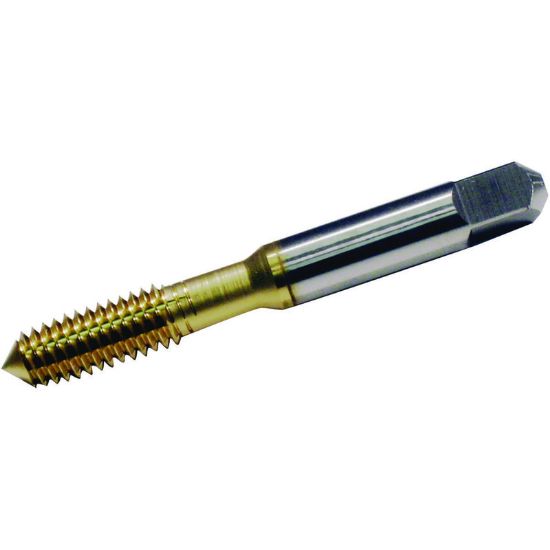

WIDIA/KENNAMETAL 18210 No.8-32.00TPI Roll Form Plug 3.0P-5.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID18210
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Application Roll Form Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Size No.8
Overall Len 2.1300 54.10MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Machine Side Connection Type Tap Collet
Thread Type NC/UNC
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Drill Range 0.1480 3.76MM - 0.1520 3.86MM
Tap Square 0.1310
Length Type Standard
Tap Style Roll Form
Tool Material Steel
Thread Pitch 32.00TPI
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
