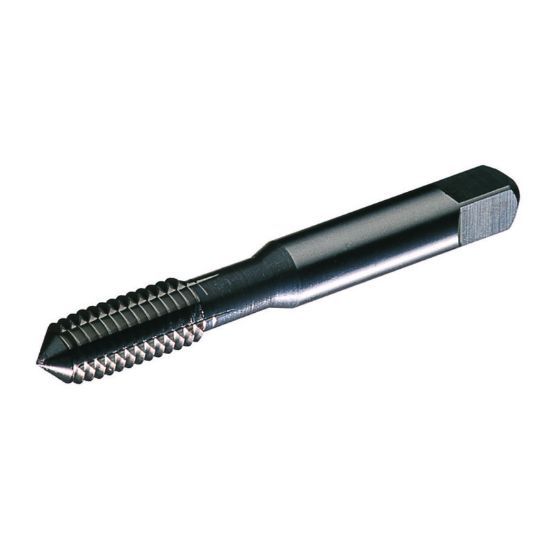

WIDIA/KENNAMETAL 17265 1/2-13.00TPI Roll Form Bottoming 1.0P-2.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID17265
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Tapping, Roll Form Tapping
Made In USA No
Shipping State Ohio
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3670 9.32MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Limit H8/GH8
Drill Range 0.4606 11.70MM - 0.4720 11.99MM
Dimension Standard ANSI/ANSI
Thread Size 1/2"
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Overall Len 3.3800 85.85MM
Thread Pitch 13.00TPI
Thread Type NC/UNC
Tap Style Roll Form
Tap Chamfer 1.0P-2.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
