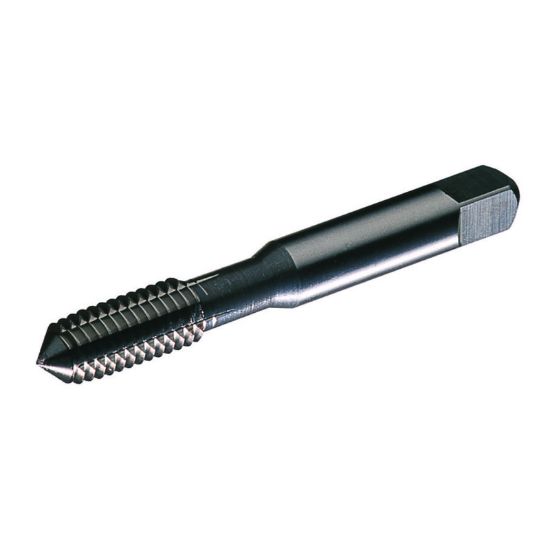

WIDIA/KENNAMETAL 17090 M8-1.25MM Roll Form Plug 3.0P-5.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID17090
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Roll Form Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Package Size 1
Shipping State Ohio
Dimensional Specifications
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Length Type Standard
Thread Limit D9
Shank/Pilot Dia 0.3230 8.20MM - P
Thread Type Metric
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Style Roll Form
Thread Size M8
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Pitch 1.25MM
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Tap Square 0.2440
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
