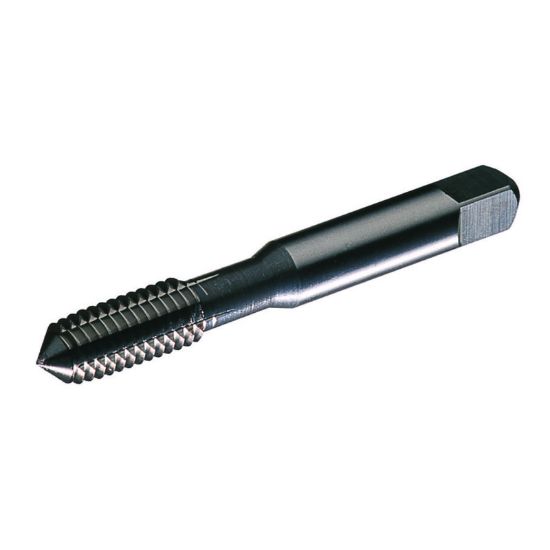

WIDIA/KENNAMETAL 17087 M6-1.00MM Roll Form Plug 3.0P-5.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID17087
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Shipping State Ohio
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Tool Material Steel
Shank/Pilot Dia 0.2550 6.48MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Flute Direction R - Right
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Length Type Standard
Tap Style Roll Form
Thread Pitch 1.00MM
Thread Limit D8
Machine Side Connection Type Tap Collet
Thread Type Metric
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Thread Size M6
Cut Rating <30HRC Steel, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
