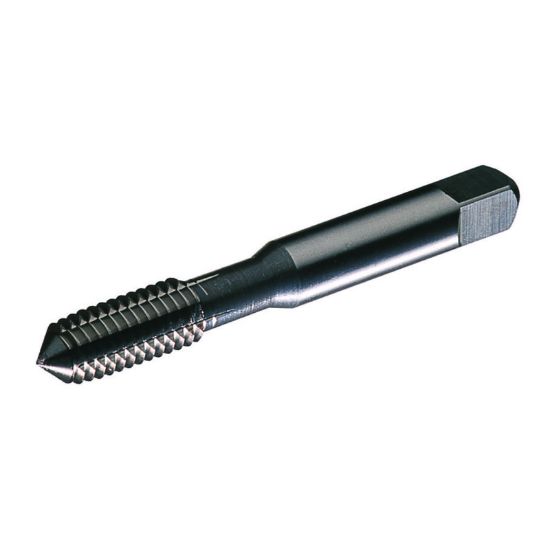

WIDIA/KENNAMETAL 17051 1/2-20.00TPI Roll Form Plug 3.0P-5.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID17051
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Roll Form Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Drill Range 0.4744 12.05MM - 0.4811 12.22MM
Length Type Standard
Overall Len 3.3800 85.85MM
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Thread Size 1/2"
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.3670 9.32MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Pitch 20.00TPI
Thread Type NC/UNC
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
