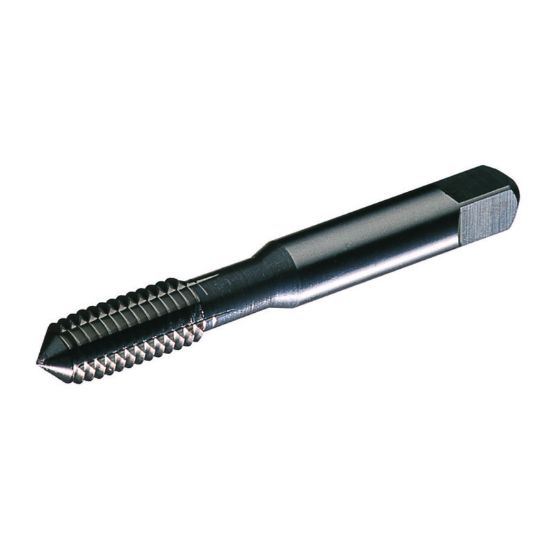

WIDIA/KENNAMETAL 17008 No.6-32.00TPI Roll Form Plug 3.0P-5.5P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID17008
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Roll Form Tapping, Through Hole Tapping
Performance Rating General Performance
Shipping State Ohio
Made In USA No
Package Size 1
Dimensional Specifications
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.1138 2.89MM - 0.1260 3.20MM
Tap Chamfer 3.0P-5.5P
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Tap Square 0.1100
Tap Type Plug
Machine Side Connection Type Tap Collet
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Overall Len 2.0000 50.80MM
Length Type Standard
Tap Style Roll Form
Thread Size No.6
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
