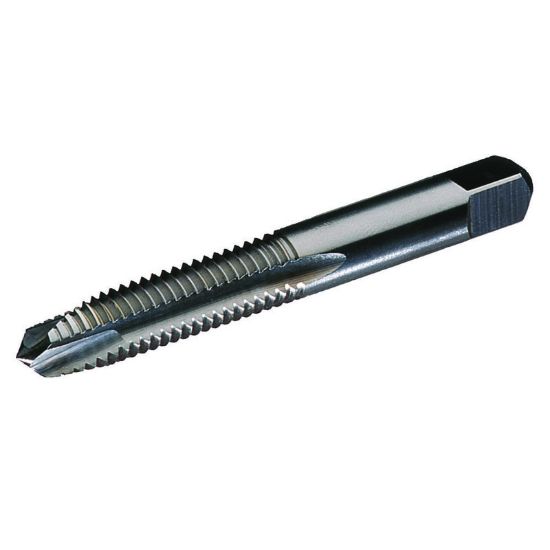

WIDIA/KENNAMETAL 16814 5/16-18.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE Nitride + Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16814
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating Nitride + Steam Oxide
Shipping State Ohio
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Type NC/UNC
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Tap Style Cut Spiral Point
Flutes/Inserts 3
Tap Square 0.2380
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Pitch 18.00TPI
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Thread Size 5/16"
Thread Limit H3/GH3
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
