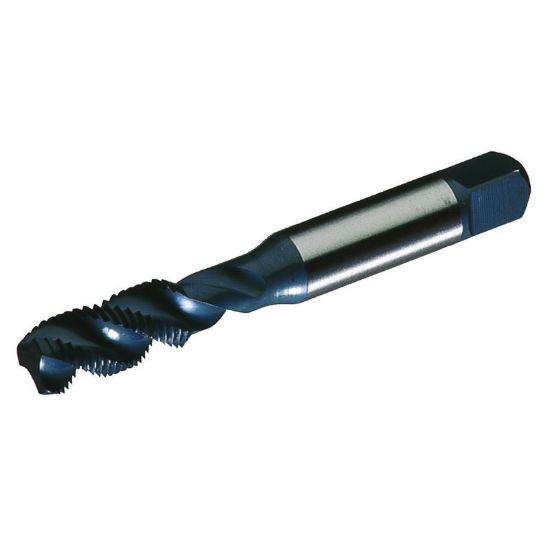

WIDIA/KENNAMETAL 16510 1/4-20.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16510
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Bottom Tapping, Tapping
Coating Steam Oxide
Package Size 1
Shipping State Ohio
Performance Rating General Performance
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Tap Chamfer 1.0P-2.0P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Dimension Standard ANSI/ANSI
Thread Size 1/4"
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
