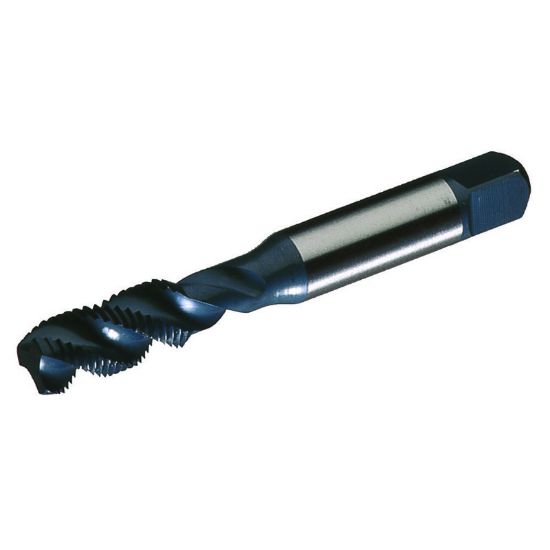

WIDIA/KENNAMETAL 16507 No.10-32.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16507
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Ohio
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating Steam Oxide
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Thread Size No.10
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1940 4.93MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Chamfer 3.0P-5.5P
Tool Material Steel
Tap Square 0.1520
Tap Type Plug
Overall Len 2.3740 60.30MM
Flutes/Inserts 3
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
