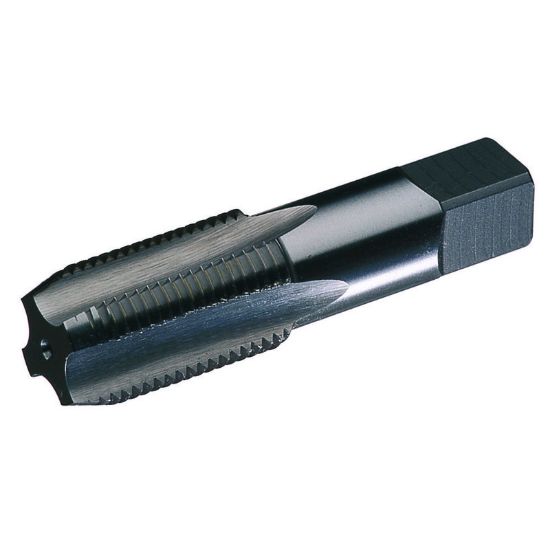

WIDIA/KENNAMETAL 16359 1/2-14.00TPI Pipe Spiral Flute Pipe 3.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16359
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Spiral Flute Pipe
Package Size 1
Performance Rating General Performance
Shipping State Ohio
Made In USA No
Dimensional Specifications
Thread Size 1/2"
Thread Type NPSM/NPSF
Tool Material Steel
Tap Square 0.7480
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Pipe Spiral Flute
Dimension Standard ANSI/ANSI
Drill Range 0.6870 17.45MM
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Thread Pitch 14.00TPI
Tap Chamfer 3.0P-5.0P
Overall Len 3.1260 79.40MM
Tap Type Pipe
Flute Direction R - Right
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
