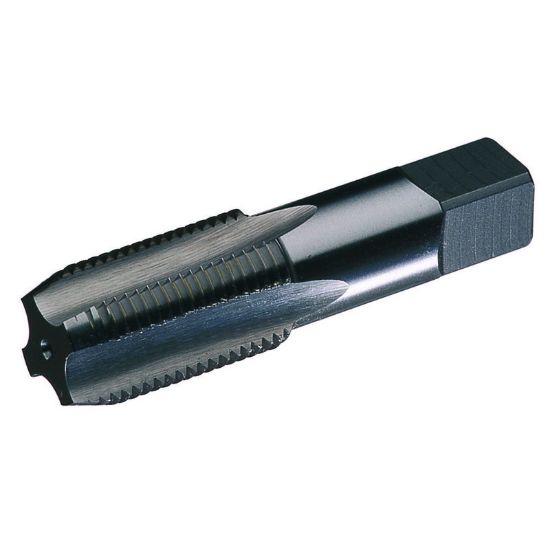

WIDIA/KENNAMETAL 16356 1/4-18.00TPI Pipe Spiral Flute Pipe 2.5P-3.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16356
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Spiral Flute Pipe
Made In USA No
Performance Rating General Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 4
Length Type Standard
Thread Type NPSM/NPSF
Tap Chamfer 2.5P-3.5P
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Overall Len 2.4370 61.90MM
Drill Range 0.4528 11.50MM
Tap Square 0.4210
Tap Type Pipe
Thread Pitch 18.00TPI
Thread Limit PIPE
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Pipe Spiral Flute
Thread Size 1/4"
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
