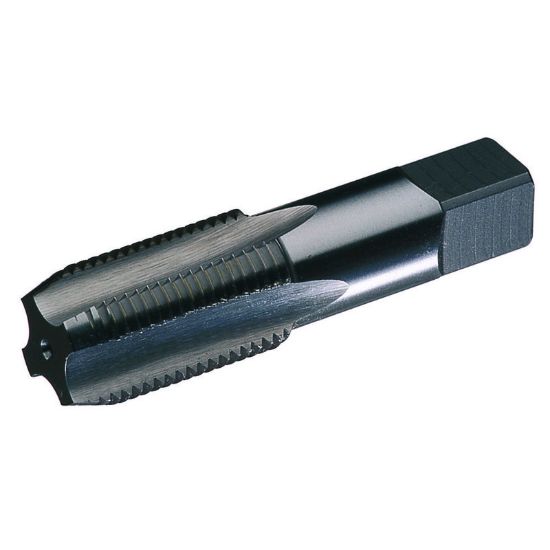

WIDIA/KENNAMETAL 16354 1/8-27.00TPI Pipe Spiral Flute Pipe 2.5P-3.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16354
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Tapping, Pipe Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Ohio
Dimensional Specifications
Thread Pitch 27.00TPI
Overall Len 2.1250 53.98MM
Tap Chamfer 2.5P-3.5P
Thread Limit PIPE
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Thread Type NPSM/NPSF
Tool Material Steel
Drill Range 0.3476 8.83MM
Tap Square 0.2340
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Tap Style Pipe Spiral Flute
Flute Direction R - Right
Length Type Standard
Thread Size 1/8"
Machine Side Connection Type Tap Collet
Tap Type Pipe
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
