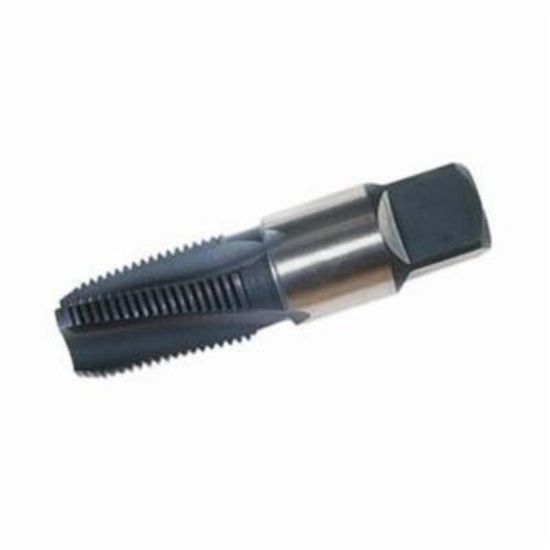

WIDIA/KENNAMETAL 16281 1/8-27.00TPI Pipe Spiral Flute Pipe 2.5P-3.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16281
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Performance Rating General Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Drill Range 0.3319 8.43MM
Length Type Standard
Overall Len 2.1250 53.98MM
Tap Chamfer 2.5P-3.5P
Thread Limit PIPE
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Pipe Spiral Flute
Tool Material Steel
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Thread Size 1/8"
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Pitch 27.00TPI
Flutes/Inserts 4
Tap Square 0.3280
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
