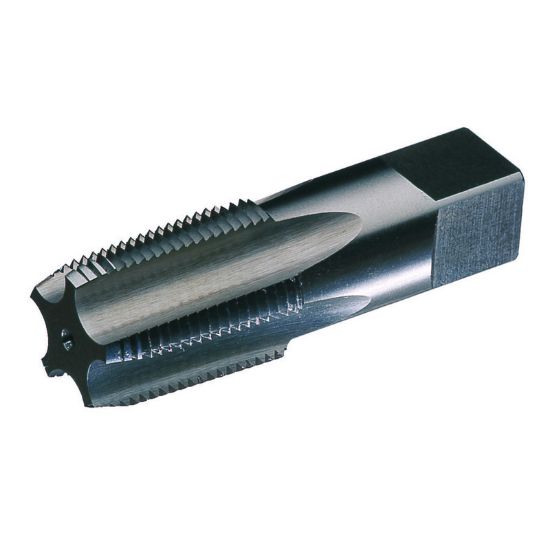

WIDIA/KENNAMETAL 16228 3/4-14.00TPI Pipe Spiral Flute Pipe 3.0P-5.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16228
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Spiral Flute Pipe
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Ohio
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 5
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Pipe Spiral Flute
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Drill Range 0.9059 23.01MM
Thread Pitch 14.00TPI
Overall Len 3.2520 82.60MM
Tap Chamfer 3.0P-5.0P
Shank/Pilot Dia 0.9060 23.01MM
Tap Type Pipe
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
