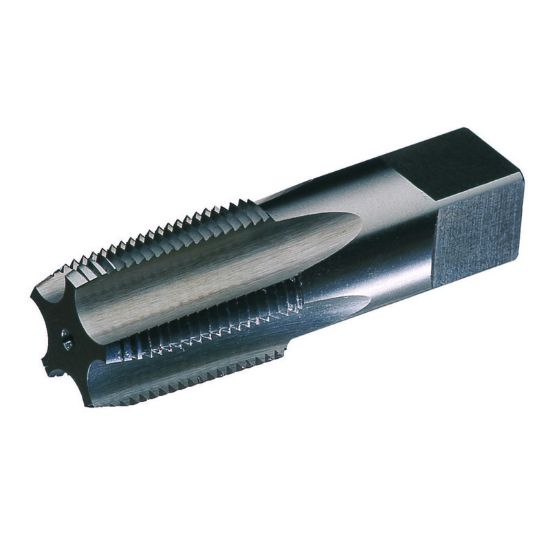

WIDIA/KENNAMETAL 16213 1/4-18.00TPI Pipe Spiral Flute Pipe 1.0P-2.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16213
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Application Pipe Tapping, Tapping, Spiral Flute Pipe
Package Size 1
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Tap Type Pipe
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Tap Style Pipe Spiral Flute
Tap Chamfer 1.0P-2.0P
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5630 14.30MM
Thread Pitch 18.00TPI
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Overall Len 2.4400 61.98MM
Length Type Standard
Tool Material Steel
Thread Size 1/4"
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
