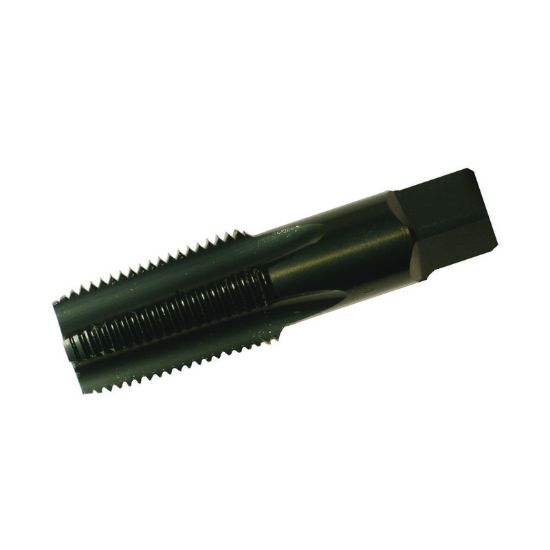

WIDIA/KENNAMETAL 16212 1/4-18.00TPI Pipe Spiral Flute Pipe 3.0P-5.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16212
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Spiral Flute Pipe, Tapping
Package Size 1
Shipping State Ohio
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Flutes/Inserts 4
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Type Pipe
Tap Chamfer 3.0P-5.5P
Overall Len 2.4370 61.90MM
Thread Size 1/4"
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Thread Pitch 18.00TPI
Thread Limit PIPE
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Pipe Spiral Flute
Dimension Standard ANSI/ANSI
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
