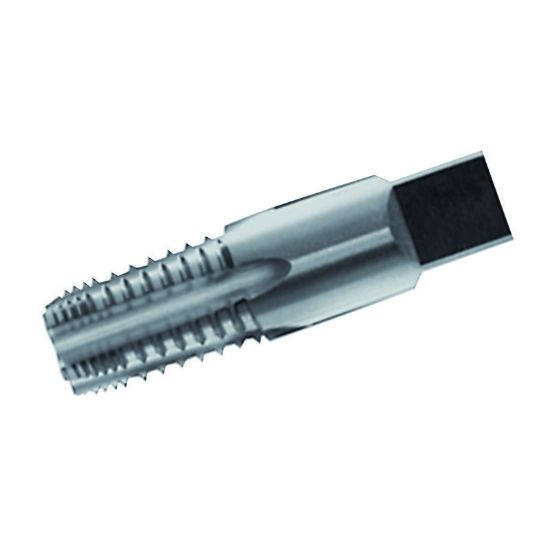

WIDIA/KENNAMETAL 16114 1-11.50TPI Pipe Spiral Flute Pipe 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16114
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Tapping, Pipe Tapping
Made In USA No
Shipping State Ohio
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Overall Len 3.7520 95.30MM
Thread Size 1"
Thread Pitch 11.50TPI
Flute Direction R - Right
Length Type Standard
Tap Type Pipe
Dimension Standard ANSI/ANSI
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Tap Square 0.8430
Flutes/Inserts 5
Thread Limit PIPE
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 1.1250 28.58MM - 1-1/8
Drill Range 1.1406 28.97MM
Tap Style Pipe Spiral Flute
Tap Chamfer 1.0P-2.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
