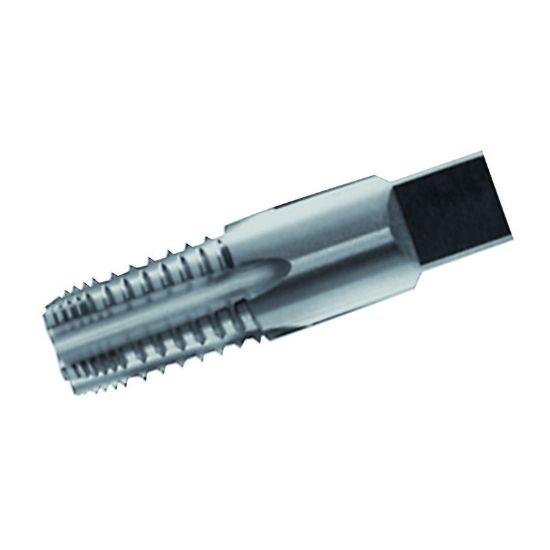

WIDIA/KENNAMETAL 16111 3/4-14.00TPI Pipe Spiral Flute Pipe 3.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16111
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Tapping, Pipe Tapping
Shipping State Ohio
Performance Rating General Performance
Package Size 1
Made In USA No
Dimensional Specifications
Thread Pitch 14.00TPI
Tap Chamfer 3.0P-5.0P
Thread Size 3/4"
Thread Limit PIPE
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.6790
Tap Style Pipe Spiral Flute
Tool Material Steel
Flutes/Inserts 5
Flute Direction R - Right
Machine Side Connection Type Tap Collet
Drill Range 0.9059 23.01MM
Tap Type Pipe
Thread Type NPT/NPTF/ANPT
Length Type Standard
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Overall Len 3.2520 82.60MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
