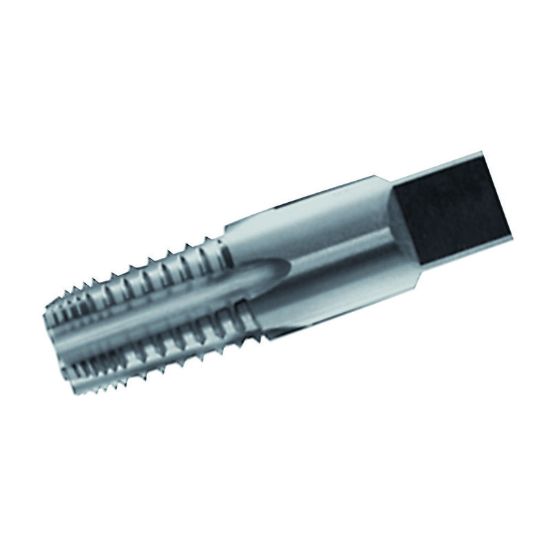

WIDIA/KENNAMETAL 16103 1/8-27.00TPI Pipe Spiral Flute Pipe 6.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16103
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Tapping, Pipe Tapping
Shipping State Ohio
Made In USA No
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Thread Limit PIPE
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Pipe Spiral Flute
Thread Pitch 27.00TPI
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Drill Range 0.3319 8.43MM
Length Type Standard
Dimension Standard ANSI/ANSI
Tool Material Steel
Flutes/Inserts 5
Tap Square 0.2340
Tap Chamfer 6.0P
Overall Len 2.1250 53.98MM
Thread Size 1/8"
Machine Side Connection Type Tap Collet
Tap Type Pipe
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
