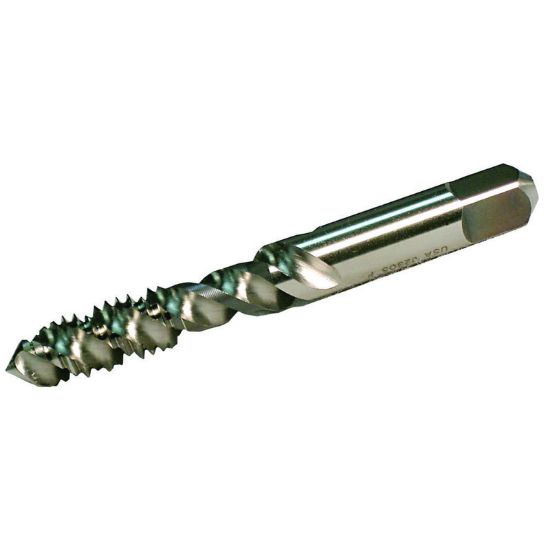

WIDIA/KENNAMETAL 16074 M12-1.75MM Cut Spiral Flute Bottoming 1.0P-2.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16074
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Pitch 1.75MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Chamfer 1.0P-2.0P
Dimension Standard ANSI/ANSI
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Size M12
Overall Len 3.3800 85.85MM
Flutes/Inserts 3
Thread Type Metric
Thread Limit D6
Shank/Pilot Dia 0.3670 9.32MM
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
