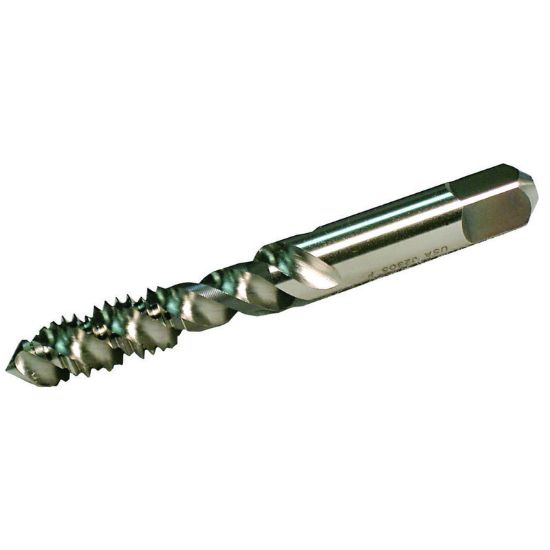

WIDIA/KENNAMETAL 16073 M12-1.75MM Cut Spiral Flute Plug 3.0P-5.5P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16073
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Ohio
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Tap Chamfer 3.0P-5.5P
Tool Material Steel
Thread Limit D6
Shank/Pilot Dia 0.3670 9.32MM
Tap Type Plug
Thread Size M12
Overall Len 3.3800 85.85MM
Flutes/Inserts 3
Flute Direction R - Right
Length Type Standard
Thread Type Metric
Dimension Standard ANSI/ANSI
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
