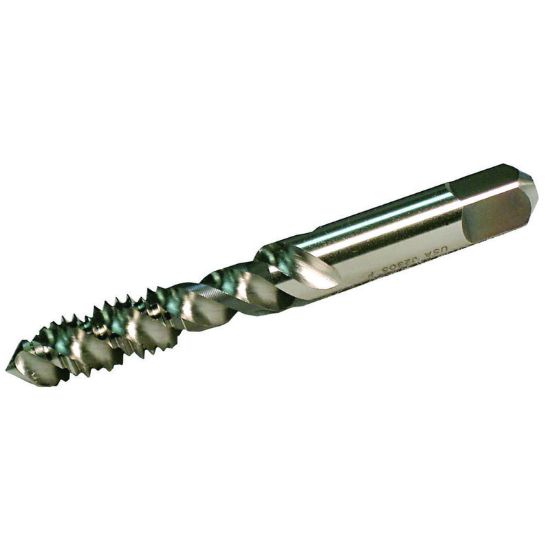

WIDIA/KENNAMETAL 16069 M8-1.25MM Cut Spiral Flute Plug 3.0P-5.5P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16069
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Shipping State Ohio
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Cut Spiral Flute
Flutes/Inserts 3
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Chamfer 3.0P-5.5P
Dimension Standard ANSI/ANSI
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Thread Size M8
Thread Type Metric
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
