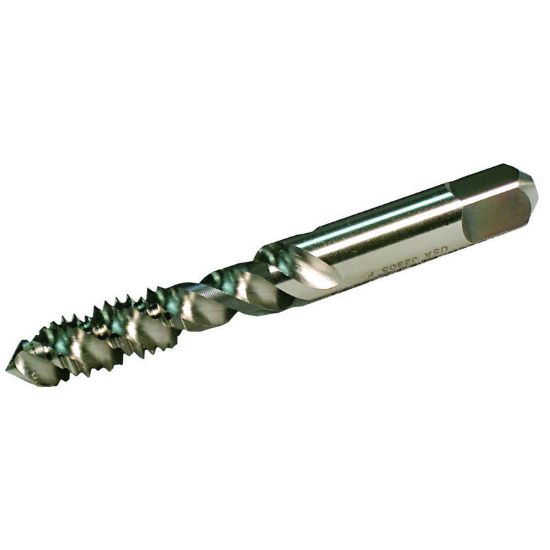

WIDIA/KENNAMETAL 16064 M6-1.00MM Cut Spiral Flute Bottoming 1.0P-2.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16064
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Shipping State Ohio
Made In USA No
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Tool Material Steel
Tap Type Bottoming
Thread Size M6
Flute Direction R - Right
Length Type Standard
Tap Chamfer 1.0P-2.0P
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Thread Type Metric
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
