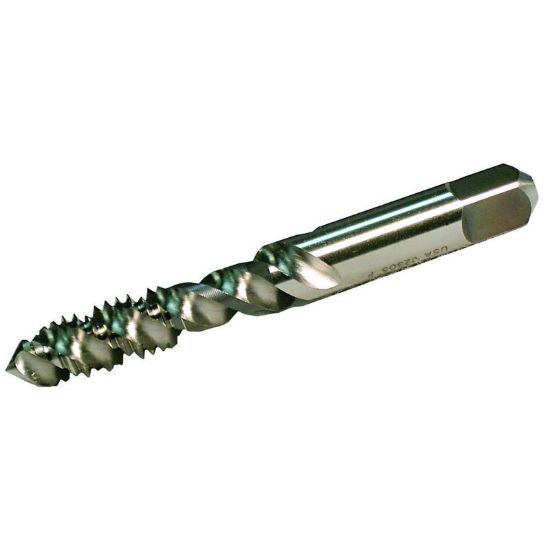

WIDIA/KENNAMETAL 16061 M5-0.80MM Cut Spiral Flute Plug 3.0P-5.5P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16061
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Package Size 1
Performance Rating General Performance
Shipping State Ohio
Made In USA No
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1500
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Cut Spiral Flute
Thread Pitch 0.80MM
Thread Type Metric
Overall Len 2.3800 60.45MM
Tap Type Plug
Thread Size M5
Flutes/Inserts 3
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Machine Side Connection Type Tap Collet
Tap Chamfer 3.0P-5.5P
Thread Limit D4
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
