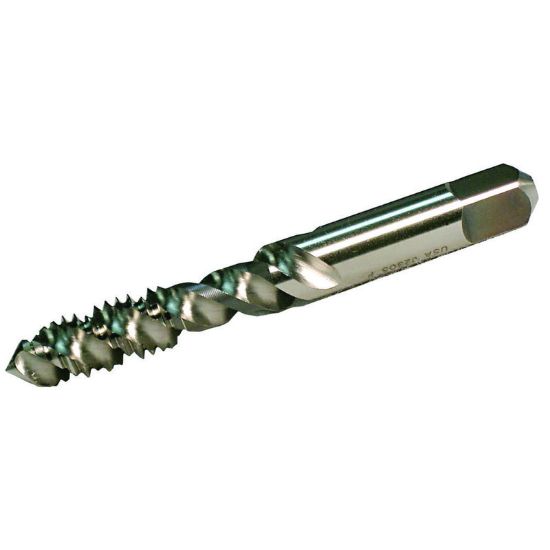

WIDIA/KENNAMETAL 16057 M4-0.70MM Cut Spiral Flute Plug 3.0P-5.5P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16057
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Package Size 1
Performance Rating General Performance
Shipping State Ohio
Dimensional Specifications
Thread Size M4
Machine Side Connection Type Tap Collet
Tap Chamfer 3.0P-5.5P
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Length Type Standard
Thread Type Metric
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Type Plug
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Style Cut Spiral Flute
Thread Limit D4
Tool Material Steel
Thread Pitch 0.70MM
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Overall Len 2.1300 54.10MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
