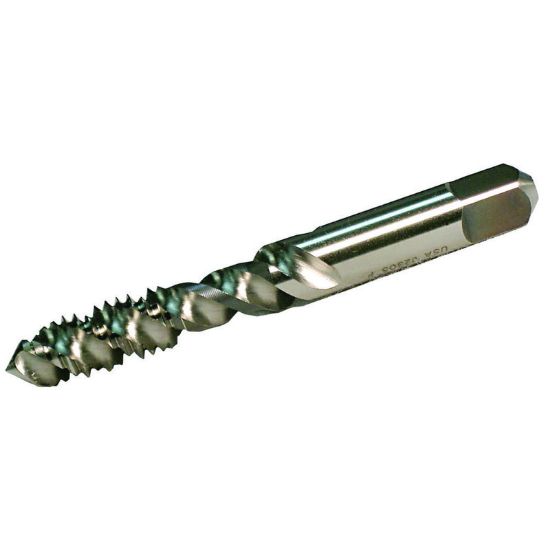

WIDIA/KENNAMETAL 16054 M3-0.50MM Cut Spiral Flute Bottoming 1.0P-2.0P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16054
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Limit D3
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Dimension Standard ANSI/ANSI
Thread Pitch 0.50MM
Shank/Pilot Dia 0.1410 3.58MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Tap Chamfer 1.0P-2.0P
Thread Size M3
Thread Type Metric
Overall Len 1.9370 49.20MM
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
