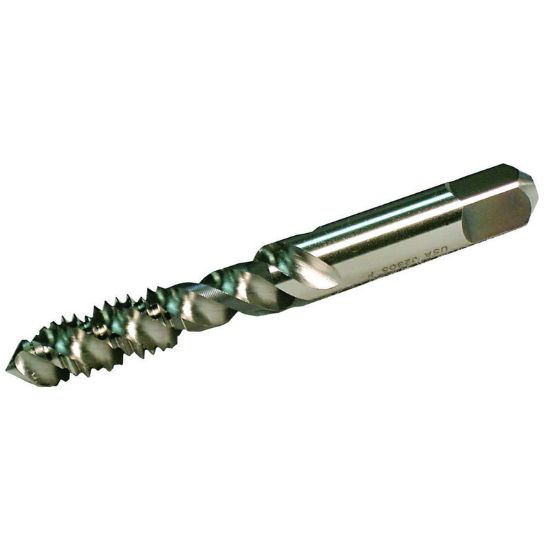

WIDIA/KENNAMETAL 16053 M3-0.50MM Cut Spiral Flute Plug 3.0P-5.5P HSSE Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID16053
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Made In USA No
Package Size 1
Shipping State Ohio
Performance Rating General Performance
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Thread Type Metric
Overall Len 1.9370 49.20MM
Tap Type Plug
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Thread Pitch 0.50MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Tap Chamfer 3.0P-5.5P
Thread Size M3
Dimension Standard ANSI/ANSI
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Style Cut Spiral Flute
Thread Limit D3
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
