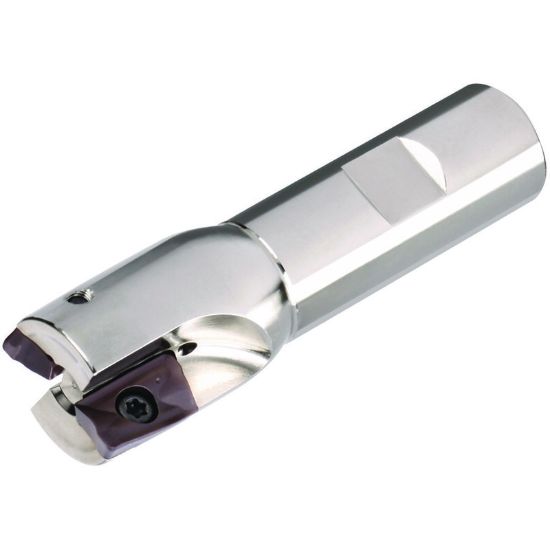

Picture of WIDIA/KENNAMETAL 15396481800 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.250

WIDIA/KENNAMETAL 15396481800 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.250

ANSI: 15396481800

ISO: 15396481800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3577776
Delivery date: 3-5 days
$401.23

Features And Benefits

90° shoulders. Excellent surface finish.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert Type Positive
Shipping State Pennsylvania
Dimensional Specifications
Length Of Cut 0.6181 15.70MM
Dimension Description 1.500 x 1.250 x 0.618 x 4.350
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Insert Size Ic 17
Overall Len 4.3504 110.50MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BD
Hand R/L Right
