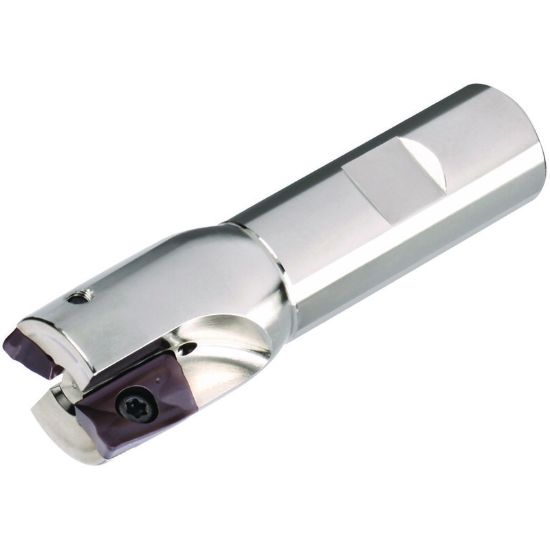

Picture of WIDIA/KENNAMETAL 15396481000 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL 15396481000 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.000

ANSI: 15396481000

ISO: 15396481000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3577774
Delivery date: 3-5 days
$364.69

Features And Benefits

90° shoulders. Excellent surface finish. Ramping capability.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Overall Len 4.0000 101.60MM
Tool Material Steel
Insert Size Ic 17
Machine Side Connection Type Cylindrical
Dimension Description 1.250 x 1.000 x 0.618 x 4.000
Flutes/Inserts 3
Length Of Cut 0.6181 15.70MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BD
Hand R/L Right
Coolant Thru Yes
