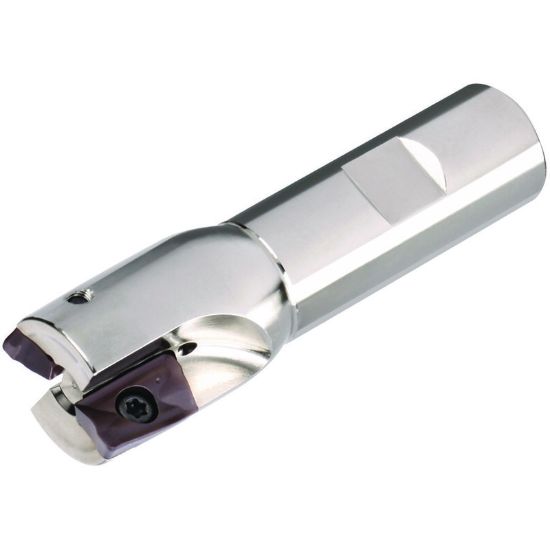

Picture of WIDIA/KENNAMETAL 15396480200 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL 15396480200 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

ANSI: 15396480200

ISO: 15396480200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3577772
Delivery date: 3-5 days
$318.31

Features And Benefits

90° shoulders. Excellent surface finish. Ramping capability.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert/Tool Tool
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Pennsylvania
Dimensional Specifications
Dimension Description 1.000 x 1.000 x 0.618 x 3.750
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Overall Len 3.7500 95.25MM
Insert Size Ic 17
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Shank/Pilot Dia 1.0000 25.40MM
Length Of Cut 0.6181 15.70MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BD
Coolant Thru Yes
Hand R/L Right
