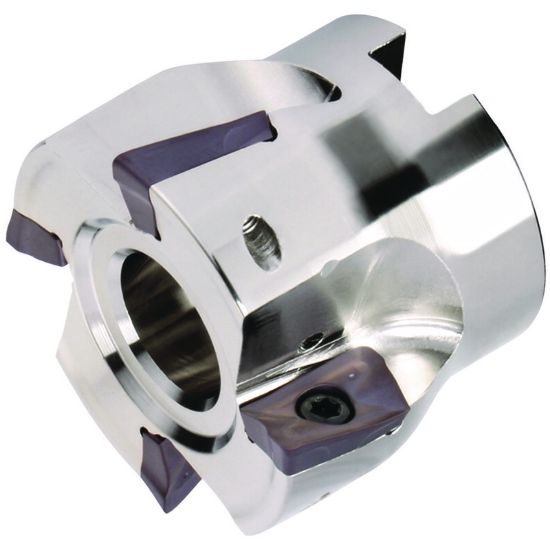

Picture of WIDIA/KENNAMETAL 15396470400 90.0° Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL 15396470400 90.0° Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

ANSI: 15396470400

ISO: 15396470400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3786392
Delivery date: 3-5 days
$373.57

Features And Benefits

90° shoulders. Excellent surface finish.

Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Shipping State Pennsylvania
Package Size 1
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Overall Len 1.5750 40.01MM
Length Of Cut 0.6181 15.70MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Insert Size Ic 17
Cutter Dia 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BD
Hand R/L Right
Coolant Thru Yes
