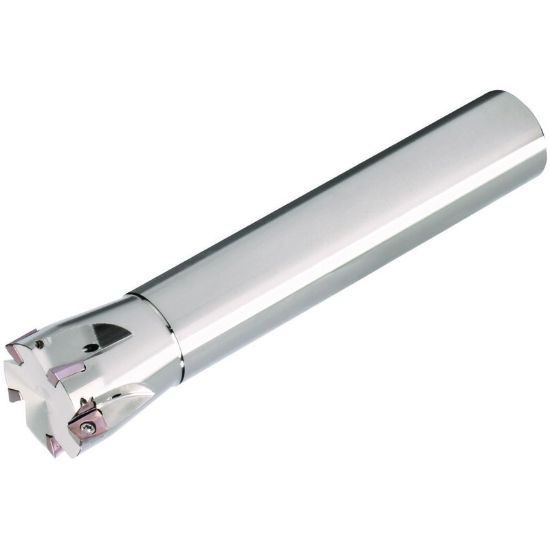

Picture of WIDIA/KENNAMETAL 15396443400 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL 15396443400 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

ANSI: 15396443400

ISO: 15396443400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3786389
Delivery date: 3-5 days
$421.95

Features And Benefits

90° shoulders. Excellent surface finish. Ramping capability.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Package Size 1
Application Ramp Milling, Slot Milling, Side Milling, Pocket Milling, Face Milling
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA No
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Overall Len 4.5000 114.30MM
Dimension Description 1.000 x 1.000 x 0.236 x 4.500
Cutter Dia 1.0000 25.40MM
Insert Size Ic 7
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Length Of Cut 0.2362 6.00MM
Flutes/Inserts 7
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BD
Hand R/L Right
Coolant Thru Yes
