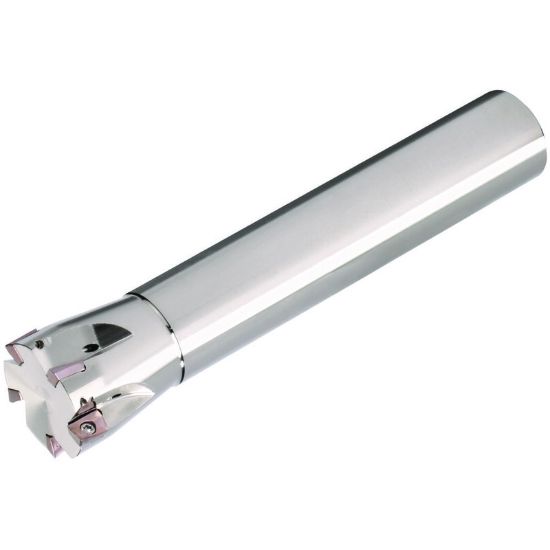

Picture of WIDIA/KENNAMETAL 15396443200 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 0.750

WIDIA/KENNAMETAL 15396443200 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 0.750

ANSI: 15396443200

ISO: 15396443200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3786390
Delivery date: 3-5 days
$351.65

Features And Benefits

90° shoulders. Excellent surface finish. Ramping capability.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Package Size 1
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 7
Machine Side Connection Type Cylindrical
Length Of Cut 0.2362 6.00MM
Cutter Dia 1.0000 25.40MM
Overall Len 4.5000 114.30MM
Dimension Description 1.000 x 0.750 x 0.236 x 4.500
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BD
Hand R/L Right
