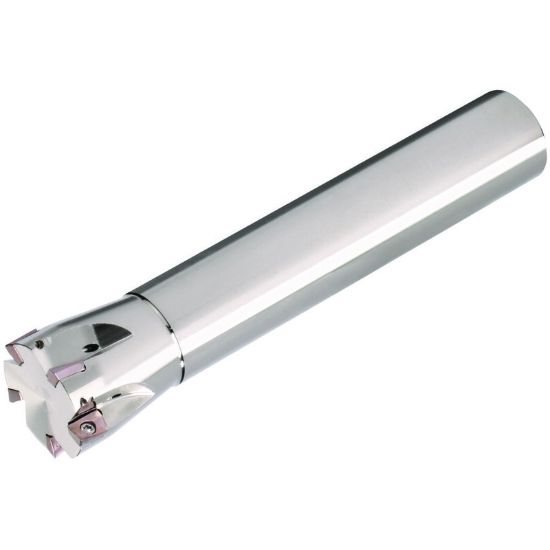

Picture of WIDIA/KENNAMETAL 15396440800 90.0° Milling Cutter 0.500 Cutter Diameter Cylindrical 0.500

WIDIA/KENNAMETAL 15396440800 90.0° Milling Cutter 0.500 Cutter Diameter Cylindrical 0.500

ANSI: 15396440800

ISO: 15396440800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3786361
Delivery date: 3-5 days
$202.17

Features And Benefits

90° shoulders. Excellent surface finish. Ramping capability.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Application Pocket Milling, Face Milling, Side Milling, Ramp Milling, Slot Milling
Shipping State Pennsylvania
Package Size 1
Insert Type Positive
Dimensional Specifications
Flutes/Inserts 2
Insert Size Ic 7
Machine Side Connection Type Cylindrical
Length Of Cut 0.2362 6.00MM
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Dimension Description 0.500 x 0.500 x 0.236 x 3.270
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2701 83.06MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style BD
Hand R/L Right
