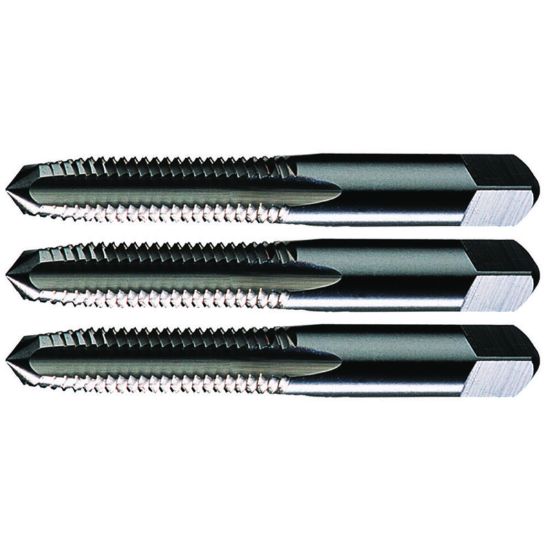

WIDIA/KENNAMETAL 15386 No.12-24.00TPI Set HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID15386
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Performance Rating General Performance
Shipping State Ohio
Package Size 1
Dimensional Specifications
Thread Size No.12
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Overall Len 2.3740 60.30MM
Machine Side Connection Type Tap Collet
Drill Range 0.1724 4.38MM - 0.1835 4.66MM
Tool Material Steel
Tap Square 0.1650
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Tap Style Set
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.2200 5.59MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
