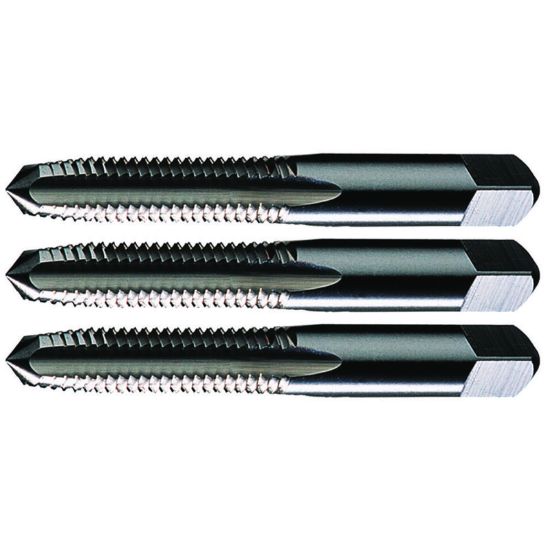

WIDIA/KENNAMETAL 15169 No.3-56.00TPI Set HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID15169
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Ohio
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Thread Size No.3
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.0803 2.04MM - 0.0850 2.16MM
Tool Material Steel
Overall Len 1.8120 46.02MM
Tap Square 0.1100
Thread Pitch 56.00TPI
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Tap Style Set
Thread Type NF/UNF/UNEF
Flutes/Inserts 3
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
