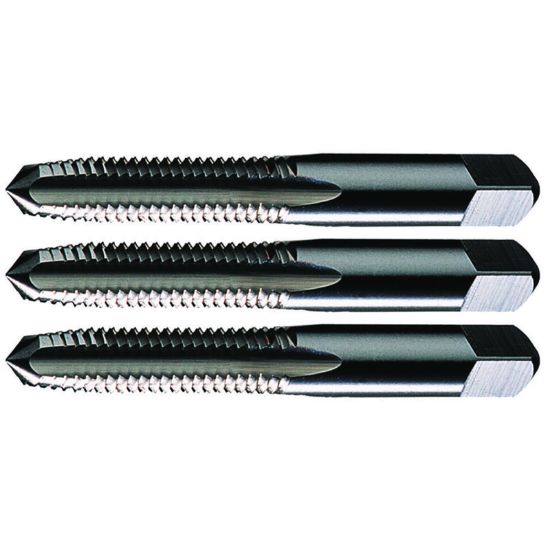

WIDIA/KENNAMETAL 15123 No.1-72.00TPI Set HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID15123
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Ohio
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 72.00TPI
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Overall Len 1.6880 42.88MM
Tap Square 0.1100
Shank/Pilot Dia 0.1410 3.58MM
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Thread Size No.1
Dimension Standard ANSI/ANSI
Drill Range 0.0583 1.48MM - 0.0622 1.58MM
Tap Style Set
Thread Type NF/UNF/UNEF
Thread Limit H1/GH1
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
Job Shop Yes
