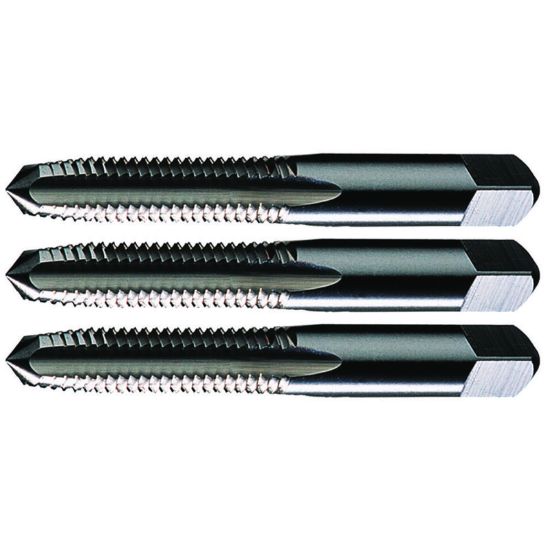

WIDIA/KENNAMETAL 14606 1-1/8-12.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID14606
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Ohio
Application Cut Tapping, Taper Tapping, Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Thread Size 1-1/8"
Thread Pitch 12.00TPI
Machine Side Connection Type Tap Collet
Thread Limit H4/GH4
Tap Chamfer 7.0P-10.0P
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Overall Len 5.4370 138.10MM
Tap Type Taper
Tool Material Steel
Drill Range 1.0445 26.53MM - 1.0598 26.92MM
Tap Square 0.6720
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.8960 22.76MM
Flutes/Inserts 4
Tap Style Hand Tap
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
