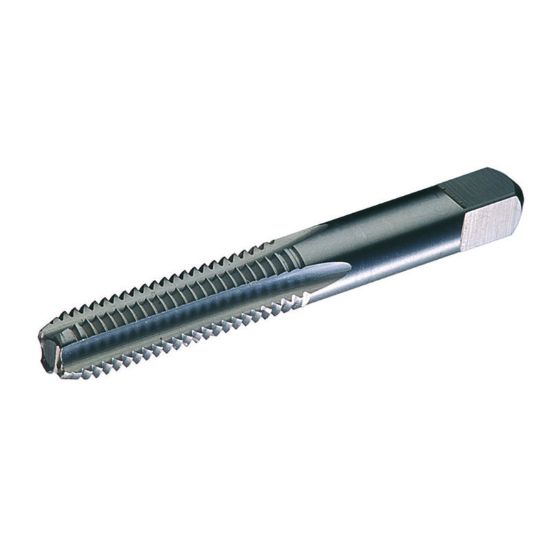

WIDIA/KENNAMETAL 14475 3/4-16.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID14475
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Taper Tapping
Performance Rating General Performance
Shipping State Ohio
Package Size 1
Made In USA No
Dimensional Specifications
Thread Limit H3/GH3
Flutes/Inserts 4
Tap Style Hand Tap
Tool Material Steel
Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tap Chamfer 7.0P-10.0P
Thread Size 3/4"
Shank/Pilot Dia 0.5900 14.99MM
Tap Type Taper
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 4.2520 108.00MM
Thread Pitch 16.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Flute Direction L - Left
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
