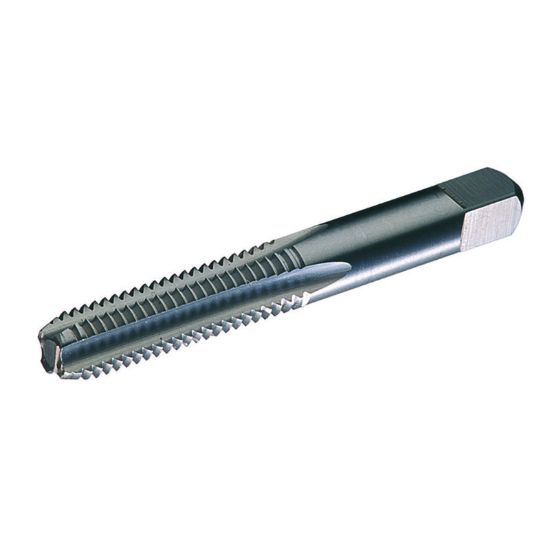

WIDIA/KENNAMETAL 14408 5/8-18.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID14408
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping, Blind Hole Tapping
Performance Rating General Performance
Shipping State Ohio
Made In USA No
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Tool Material Steel
Tap Square 0.3600
Thread Size 5/8"
Flute Direction L - Left
Overall Len 3.8110 96.80MM
Machine Side Connection Type Tap Collet
Thread Limit H3/GH3
Flutes/Inserts 4
Length Type Standard
Tap Style Hand Tap
Tap Type Bottoming
Thread Pitch 18.00TPI
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.4800 12.19MM
Tap Chamfer 1.0P-2.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
