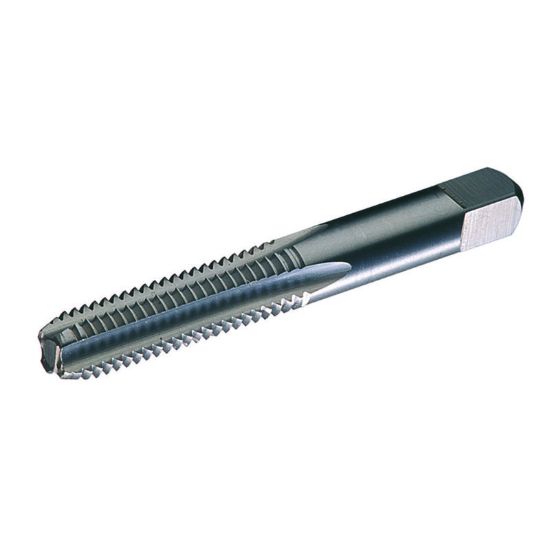

WIDIA/KENNAMETAL 14384 5/8-11.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID14384
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Ohio
Dimensional Specifications
Dimension Standard ANSI/ANSI
Flute Direction L - Left
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Tap Chamfer 3.0P-5.5P
Tool Material Steel
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.4800 12.19MM
Thread Type NC/UNC
Thread Limit H3/GH3
Flutes/Inserts 4
Length Type Standard
Tap Style Hand Tap
Thread Size 5/8"
Overall Len 3.8110 96.80MM
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
