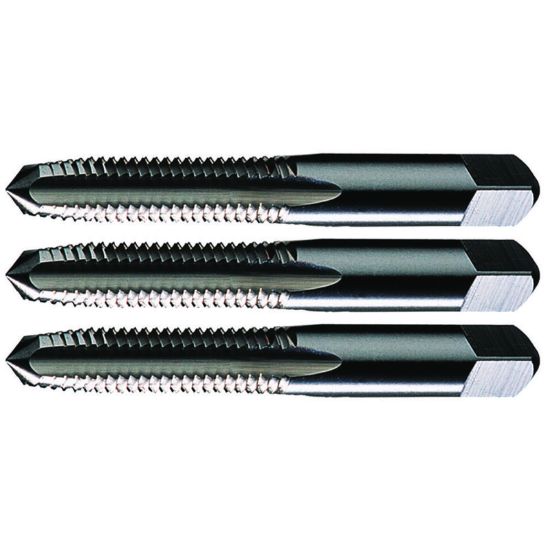

WIDIA/KENNAMETAL 14311 1/2-20.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID14311
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Shipping State Ohio
Package Size 1
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3740 85.70MM
Machine Side Connection Type Tap Collet
Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2750
Tap Chamfer 3.0P-5.5P
Thread Size 1/2"
Tap Type Plug
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Thread Pitch 20.00TPI
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Tap Style Hand Tap
Thread Type NF/UNF/UNEF
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
