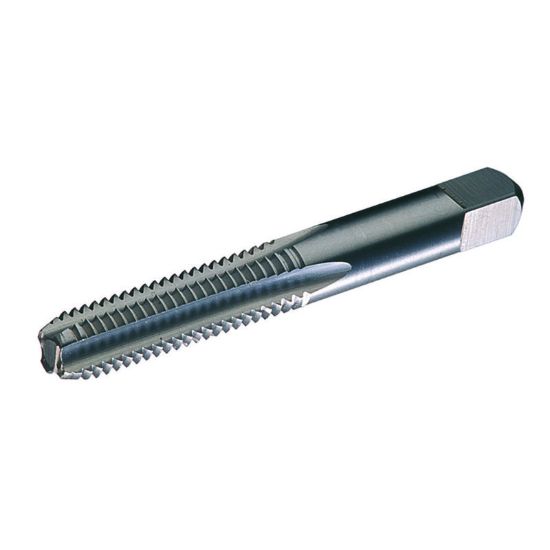

WIDIA/KENNAMETAL 14196 3/8-24.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID14196
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Blind Hole Tapping, Bottom Tapping, Cut Tapping, Tapping
Shipping State Ohio
Performance Rating General Performance
Dimensional Specifications
Thread Size 3/8"
Thread Limit H3/GH3
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 4
Length Type Standard
Tap Style Hand Tap
Tap Chamfer 1.0P-2.0P
Flute Direction L - Left
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.2860
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Machine Side Connection Type Tap Collet
Tool Material Steel
Overall Len 2.9370 74.60MM
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
