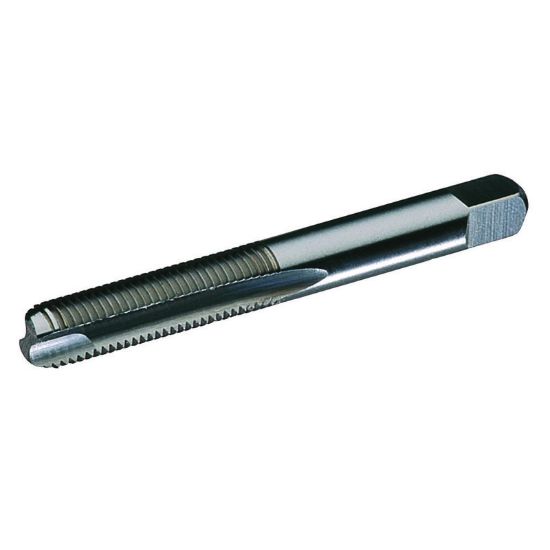

WIDIA/KENNAMETAL 13636 No.12-24.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID13636
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Ohio
Dimensional Specifications
Overall Len 2.3740 60.30MM
Machine Side Connection Type Tap Collet
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Tool Material Steel
Tap Square 0.1650
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.2200 5.59MM
Drill Range 0.1724 4.38MM - 0.1835 4.66MM
Tap Chamfer 1.0P-2.0P
Thread Size No.12
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Tap Style Hand Tap
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
